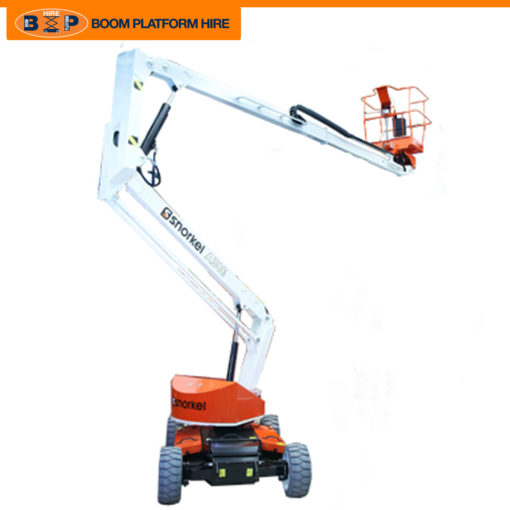

Snorkel AB38
The class-leading Snorkel A38E is a lightweight, durable and reliable electric articulated boom lift. Designed for internal and external use, this lift benefits from compact dimensions and an articulating/telescopic boom configuration for maximum maneuverability and versatility.
STANDARD FEATURES
- Snorkel Guard™ secondary guarding system
- Proportional one-handed controls
- Hydraulic platform rotation
- Minimal front boom overhang
- Ultra-tight inside turning radius
- Power line to platform
- Tilt alarm and cut-out
- 2 person indoor
- 1 person outdoor
- Direct DC drive series wired wheel motors
- Non-marking tyres
- Duplicate boom controls at ground level
- Hour meter & on-board diagnostics display
- Flashing amber light
- 2 year parts & labour, 5 year structural warranty
- CE approved
| Max Working Height | 13.5m |
| Max Platform Height | 11.5m |
| Max Working Outreach | 6.1m |
| Clearance Height at Max Outreach | 5.4m |
| Platform Size | 0.69m x 1.11m |
| Overall Width | 1.5m |
| Overall Length | 4.1m |
| Stowed Height | 2.0m |
| Ground Clearance | 120mm |
| Platform Capacity (SWL) | 215kg |
| Max Drive Height | 11.5m |
| Max Wind Speed | 12.5m/s |
| Max Drive Speed (stowed) | 4.0m/h |
| Max Drive Speed (elevated) Forward | 0.5km/h |
| Max Drive Speed (elevated) Reverse | 0.4 km/h |
| Platform Rotation | 90º (+45º/-45º) |
| Turret Rotation | 360º non-continuous |
| Tailswing (elevated) | 0m |
| Tailswing (stowed) | 1.4m |
| Raise/Lower Time | 83/68 sec |
| Gradeability | 36% |
| Inside Turning Radius | 1.12m |
| Outside Turning Radius | 2.4m |
| Tyres | 22 x 9 16 non-marking rubber |
| Controls | proportional |
| Drive System | direct drive DC |
| Power Source | 8 x 6V, 220Ah batteries |
| Battery Charger | 100-200V/15A |
| Weight | 3,880kg |
Snorkel AB38
Platform Height
10m / 32ft 10in
Minimum Weight
3,665.00kg / 8,1001bs
Machine Length
4.17m /13ft 9in
Machine Height
1.98m / 6ft 6in
Turning Radius
1.9m / 6ft 3in
Working Height
12m / 39ft 5in
Maximum Outreach
5.57m / 18ft 4in
Lifting Capacity
200.00kg / 4421bs
Machine Width
15m/5ft
Power Options
Electric/Battery
Gradeability
30%
