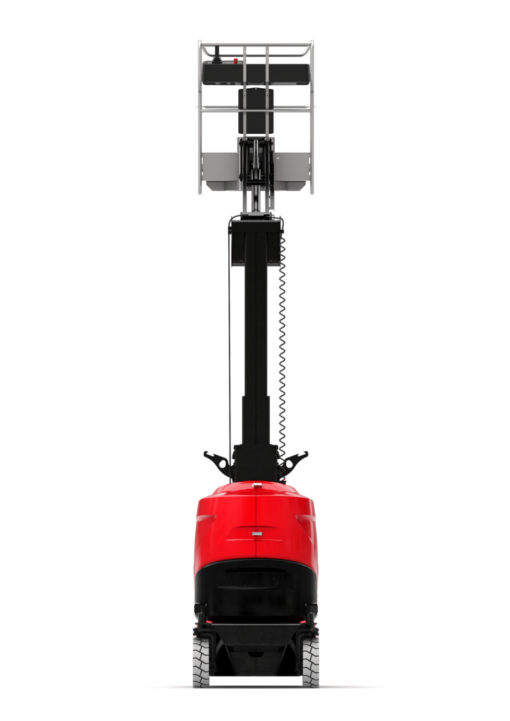

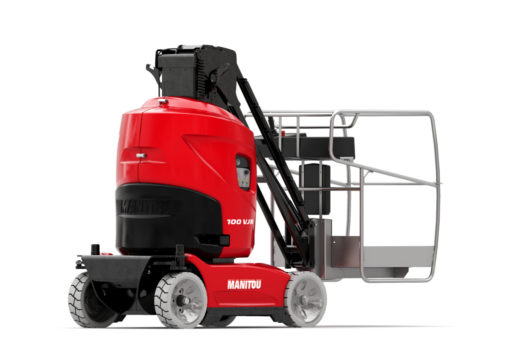

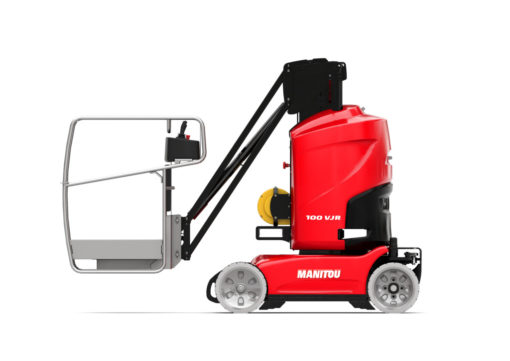

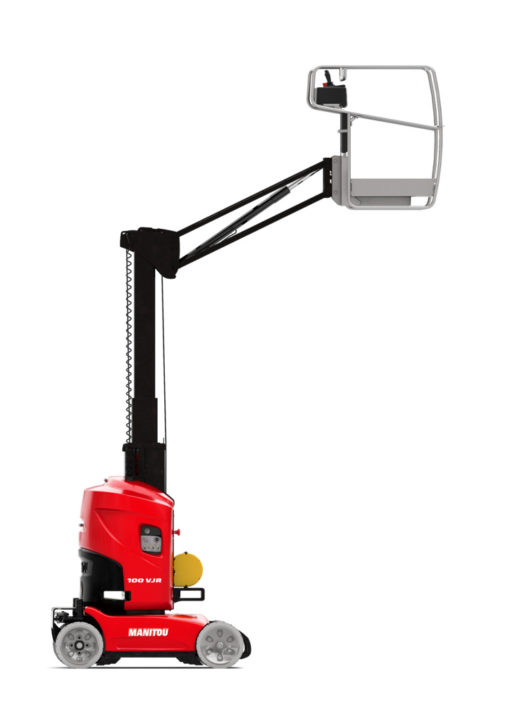

Manitou 100 VJR

Check out the performance of the 100 VJR for your aerial handling operations. Compact and easy to handle, this model consists of a vertical telescopic mast, an electric engine and a perforated basket meeting all your industrial requirements. The turret system rotates continuously at 360 degrees providing great flexibility to operators, and the machine compactness allows easy travel through a majority of industrial doors. The 100 VJR is ideal to work in multiple applications, thanks to the advantageous features of this vertical mast design.

Outlook-1yjhecqw

Manitou 100 VJR Electric Boom

boomplatformhire

Platform Height

7.9m / 26ft

boomplatformhire

Minimum Weight

2,650.00kg / 5,8571bs

boomplatformhire

Machine Length

2.82m / 9ft 4in

boomplatformhire

Machine Height

1.99m / 6ft 7in

boomplatformhire

Turning Radius

7, 0.59m / 2ft

boomplatformhire

Cage Rotation

140 degrees

boomplatformhire

Working Height

9.9m / 32ft 6in

boomplatformhire

Maximum Outreach

3.15m / 10ft 5in

boomplatformhire

Safe Working Load

200.00kg / 4421bs

boomplatformhire

Machine Width

0.99m / 3ft 3in

boomplatformhire

Power Options

Electric/Battery

boomplatformhire

Gradeability

25%
