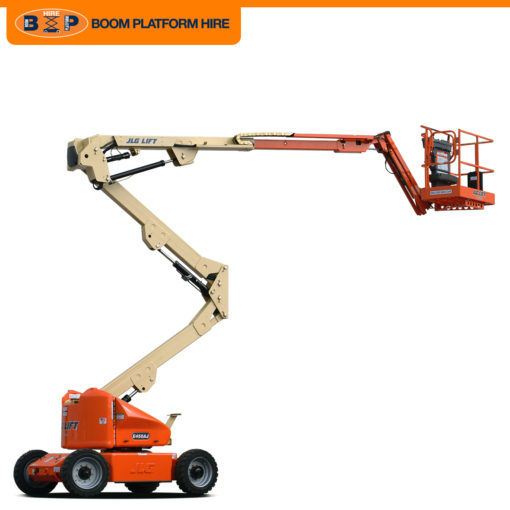

JLG E450AJ
Key Specs
- Platform Height: 45 ft / 13.72 m
- Machine Width: 5 ft 9 in. / 1.75 m
- Platform Capacity – Unrestricted: 500 lb / 226.80 kg
Key Features
- Accessibility – up and over access, optional jib
- Maneuverability – move over uneven surfaces with Automatic Traction Control
- Productivity – work longer with longer duty cycles
- Environmentally friendly – zero emissions
- Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
| Power Source | |
|---|---|
| Batteries | 8 x 6V, 370 A-h |
| Electrical System | 48 Volts DC |
| Performance | |
|---|---|
| Drive Speed – Platform Lowered | 3.2 mph / 5.15 km/h |
| Gradeability – 2WD | 30 % |
| Platform Capacity | 500 lb / 226.80 kg |
| Platform Capacity – Unrestricted | 500 lb / 226.80 kg |
| Swing | 360 Degrees |
| Swing Type | Non-Continuous |
| Turning Radius – Outside | 10 ft 4 in. / 3.15 m |
| Jib – Range of Articulation | 141 Degrees |
| Dimensional Data | |
|---|---|
| Ground Clearance | 8 in. / 0.2 m |
| Machine Height | 6 ft 7 in. / 2.01 m |
| Machine Length | 21 ft 2 in. / 6.45 m |
| Machine Width | 5 ft 9 in. / 1.75 m |
| Platform Dimension A | 2 ft 6 in. / 0.76 m |
| Platform Dimension B | 5 ft / 1.52 m |
| Tailswing | 0 in. / 0 m |
| Tire Size | 240/55-17.5 Foam Filled |
| Wheelbase | 6 ft 7 in. / 2.01 m |
| Reach Specifications | Horizontal Jib Rotation | 0 Degrees |
|---|---|
| Horizontal Outreach | 23 ft 9 in. / 7.24 m |
| Platform Height | 45 ft / 13.72 m |
| Up and Over Height | 25 ft 3 in. / 7.7 m |
| General Specifications | |
|---|---|
| Capacity – Hydraulic Reservoir | 4 gal. / 15.14 L |
| Machine Weight | 14400 lb / 6531.73 kg |
| Maximum Ground Bearing Pressure | 110 psi / 7.70 Kg/cm2 |
JLG E450AJ
Platform Height
13.94m / 45ft 9in
Min Weight
7,394.00kg/16,341lbs
Machine Length
6.83m/22ft 5in
Machine Height
2m/6ft 7in
Turning Radius
1.8m/5ft 11in
Cage Rotation
160 degrees
Working Height
15.94m/52ft 4in
Maximum Outreach
7.65m/25ft 2in
Safe Working Load
227.00kg/502lbs
Machine Width
1.79m/5ft 11in
Power Options
Fully Electric
Gradeability
30%
