JLG E300AJP
Key Specs
- Platform Height : 29 ft 5 in. / 8.97 m
- Machine Width : 4 ft / 1.22 m
- Platform Capacity – Unrestricted: 500 lb / 226.80 kg
Key Features

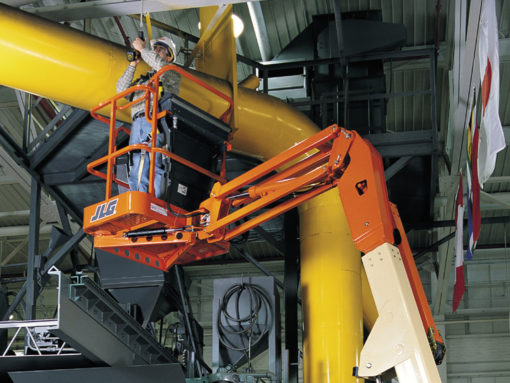

- Accessibility – up and over access, optional jib
- Maneuverability – move over uneven surfaces with Automatic Traction Control
- Productivity – longer with longer duty cycles
- Environmentally friendly – zero emissions
- Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
| Power Source | |
|---|---|
| Batteries | 8 x 6V, 305 A-h |
| Charger | 48 Volts DC |
| Performance | |
|---|---|
| Drive Speed – Platform Lowered | 3 mph / 4.83 km/h |
| Gradeability – 2WD | 25% |
| Platform Capacity | 500 lb / 226.80 kg |
| Platform Capacity – Unrestricted | 500 lb / 226.80 kg |
| Swing | 350 Degrees |
| Swing Type | Non-Continuous |
| Turning Radius – Outside | 10 ft 2 in. / 3.1 m |
| Jib – Range of Articulation | 144 Degrees |
| Dimensional Data | |
|---|---|
| Ground Clearance | 4 in. / 0.1 m |
| Machine Height | 6 ft 7 in. / 2.01 m |
| Machine Width | 4 ft / 1.22 m |
| Machine Length | 18 ft 10 in. / 5.74 m |
| Platform Dimension A | 2 ft 6 in. / 0.76 m |
| Platform Dimension B | 4 ft / 1.22 m |
| Tailswing | 0 in. / 0 m |
| Tire Size | 25 x 7 x 12 Non-marking |
| Wheelbase | 5 ft 5 in. / 1.65 m |
| Reach Specifications | |
|---|---|

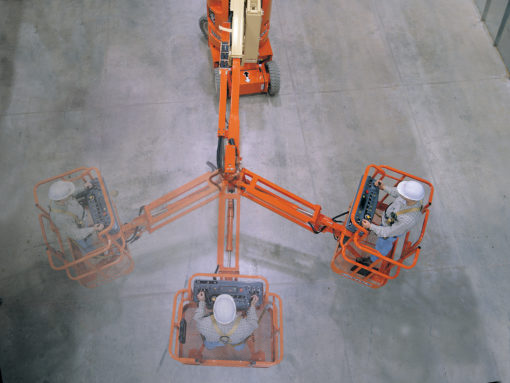

| Horizontal Jib Rotation | 180 Degrees |
| Horizontal Outreach | 20 ft 1 in. / 6.12 m |
| Platform Height | 29 ft 5 in. / 8.97 m |
| Up and Over Height | 13 ft 2 in. / 4.01 m |
| General | |
|---|---|
| Capacity – Hydraulic Reservoir | 2.1 gal. / 7.95 L |
| Machine Weight | 15705 lb / 7123.67 kg |

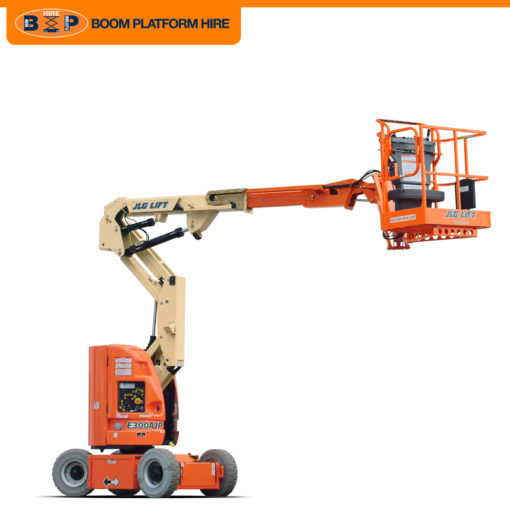

JLG E300AJP Electric Boom
Platform Height
8.89m / 29ft 3in
Minimum Weight
6,450.00kg /14,255lbs
Machine Length
5.31m /17ft 6in
Machine Height
2.05m / 6ft 9in
Turning Radius
1.65m / 5ft 5in
Cage Rotation
180 degrees
Working Height
10.89m / 35ft 9in
Maximum Outreach
6.25m / 20ft 7in
Safe Working Load
227.00kg / 5021bs
Machine Width
119m / 3ft 11in
Power Options
Electric/Battery
Gradeability
35%
