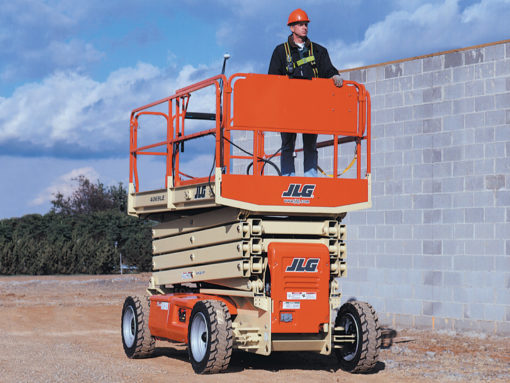

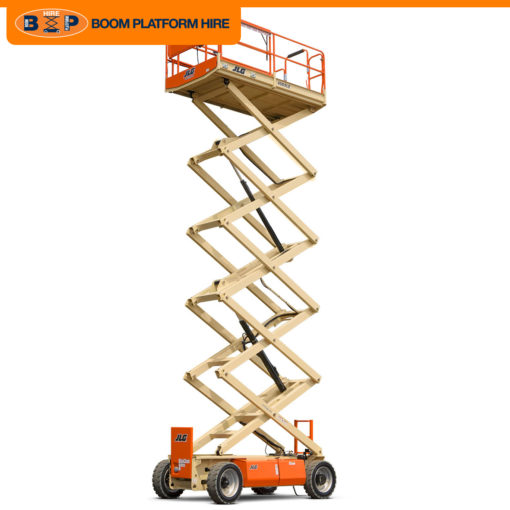

JLG 4069

Key Specs
  • Platform Height : 12.19 m / 40 ft
  • Machine Width : 1.75 m / 5.7 ft
  • Platform Capacity : 360 kg / 793.7 lb
  • Working Height : 14.19 m / 46.6 ft
Key Features
  • Superior performance on or off slab
  • Rugged terrain tires take you anywhere you want to go
  • With optional hydraulic leveling jacks, uneven terrain is no problem
  • Double the duty cycle of other scissor lifts so you can stay on the job longer
Power Source
Batteries 8 x 6V, 370 A-h
Charger 20 A SCR Automatic
General Specifications
Brakes Spring Applied Hyd Released Discs
Capacity – Hydraulic Reservoir 32 L / 8.5 gal.
Ground Bearing Pressure 4.30 Kg/cm2
Hydraulic Pump Single Section Gear Pump
Machine Weight (ANSI Export & CSA) 5216 kg / 11499.3 lb
Machine Weight 5300 kg / 11684.5 lb
Machine Weight (CE & GOST) 5300 kg / 11684.5 lb
Performance Data
Drive Speed – Platform Elevated 0.80 km/h / 0.5 mph
Drive Speed – Platform Lowered 4 km/h / 2.5 mph
Gradeability – 2WD 35 %
Gradeability – 4WD 45 %
Lift Time 54 sec.
Lower Time 50 sec.
Maximum Drive Height 9.14 m / 30 ft
Maximum Lift Height 12.19 m / 40 ft
Outriggers or Stabilizers No
Platform Capacity 360 kg / 793.7 lb
Platform Capacity – Extension 120 kg / 264.6 lb
Turning Radius – Outside 4.88 m / 16 ft
Dimensional Data
Ground Clearance 0.2 m / 8 in.
Machine Height 2.83 m / 9.3 ft
Machine Height – Rails Folded 2.04 m / 6.7 ft
Machine Length 3.15 m / 10.3 ft
Machine Width 1.75 m / 5.7 ft
Platform Dimension A 1.65 m / 5.4 ft
Platform Dimension B 2.92 m / 9.6 ft
Platform Extension Length 0.91 m / 3 ft
Platform Height 12.19 m / 40 ft
Platform Height – Lowered 1.73 m / 5.7 ft
Platform Railing Height 1.10 m / 3.6 ft
Tire Size (ANSI Export and CSA) 240/55 x 17.5 Non-Marking
Tyre Size AUS 240/55 x 17.5 Non-Marking
Tyre Size 240/55 x 17.5 Non-Marking
Wheelbase 2.32 m / 7.6 ft
Reach Specifications
Platform Height 12.19 m / 40 ft
Working Height 14.19 m / 46.6 ft
